Stainless Steel Crank Shaft
Material:Shaft

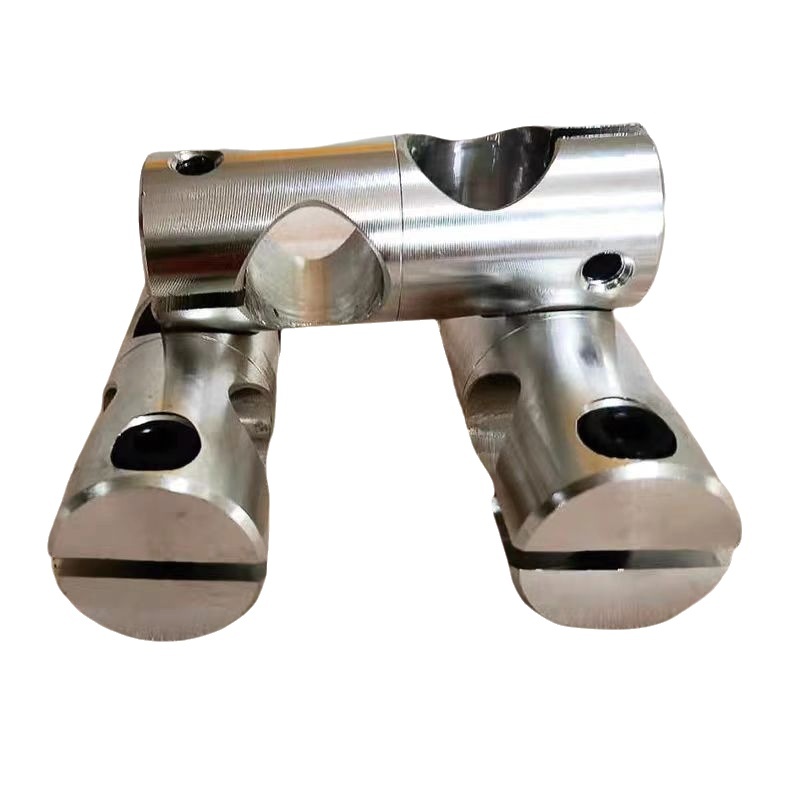

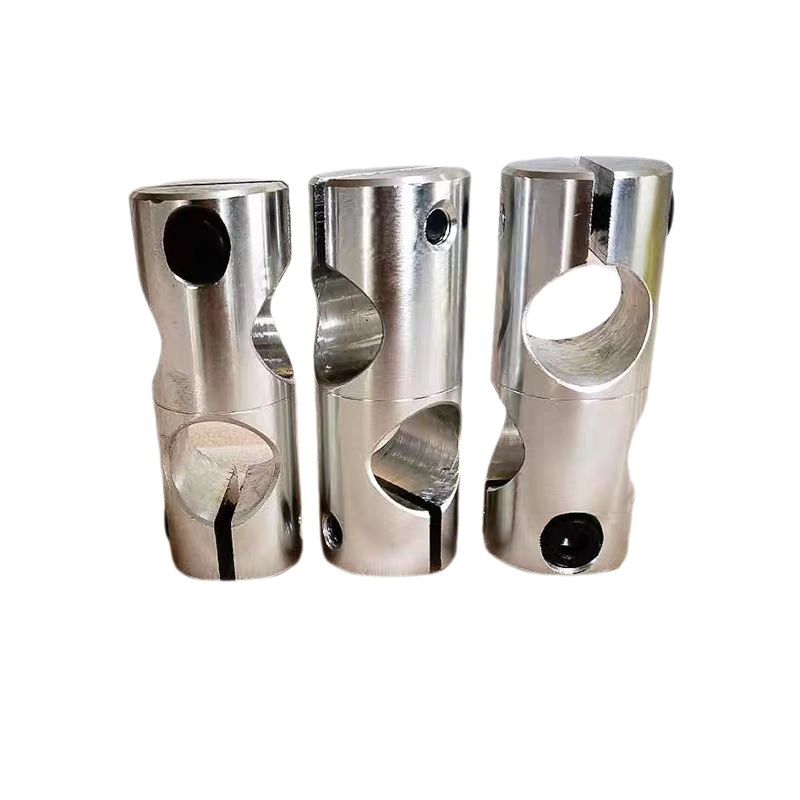

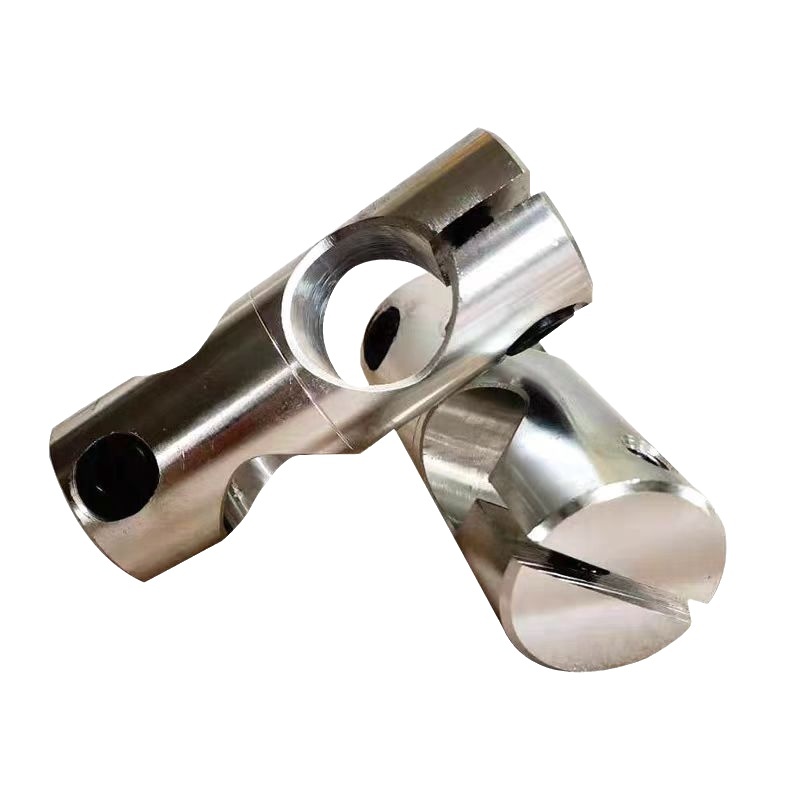

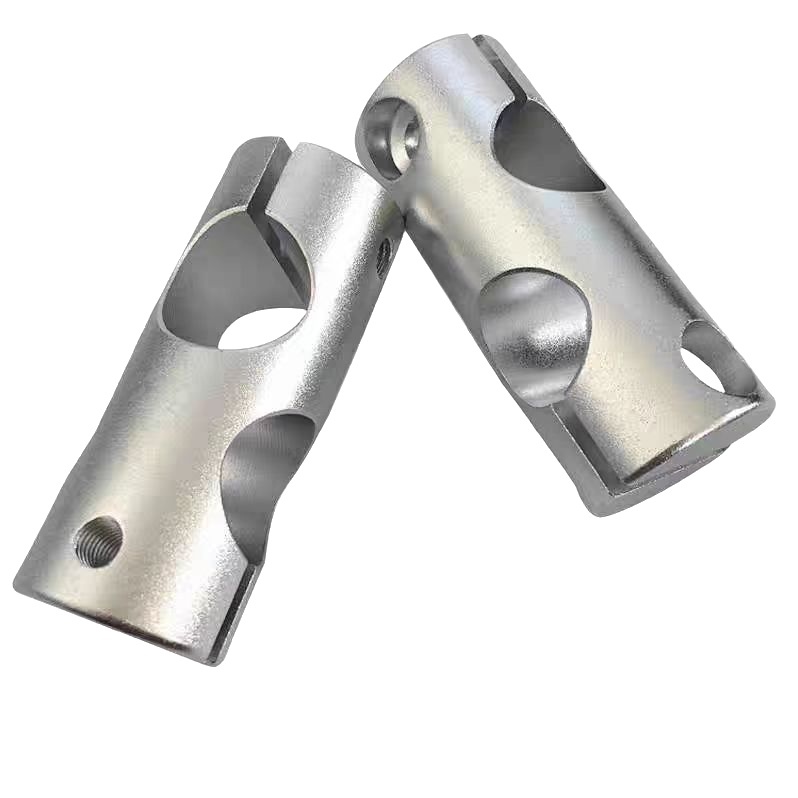

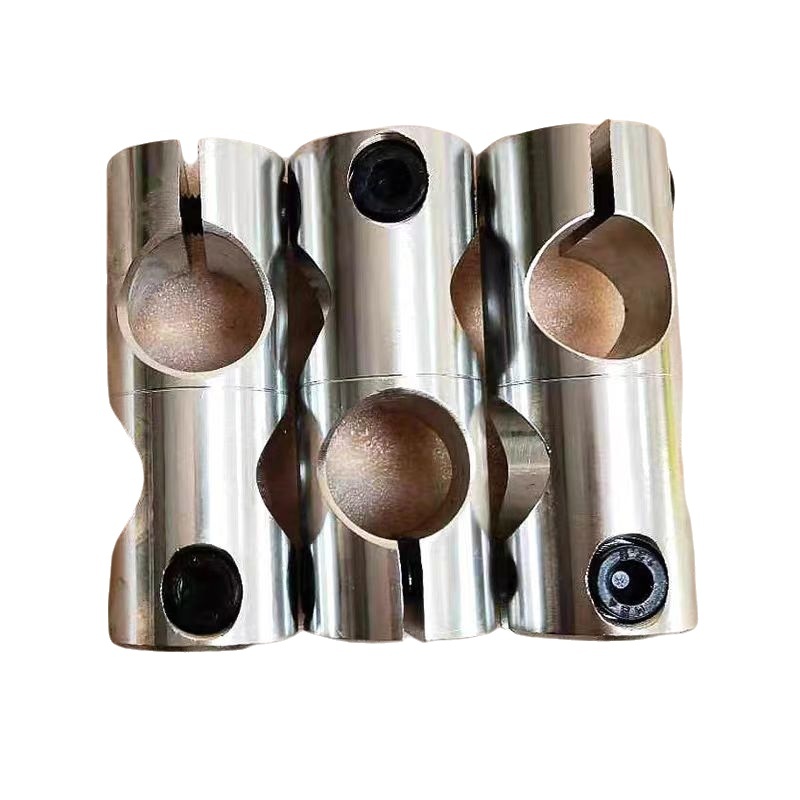

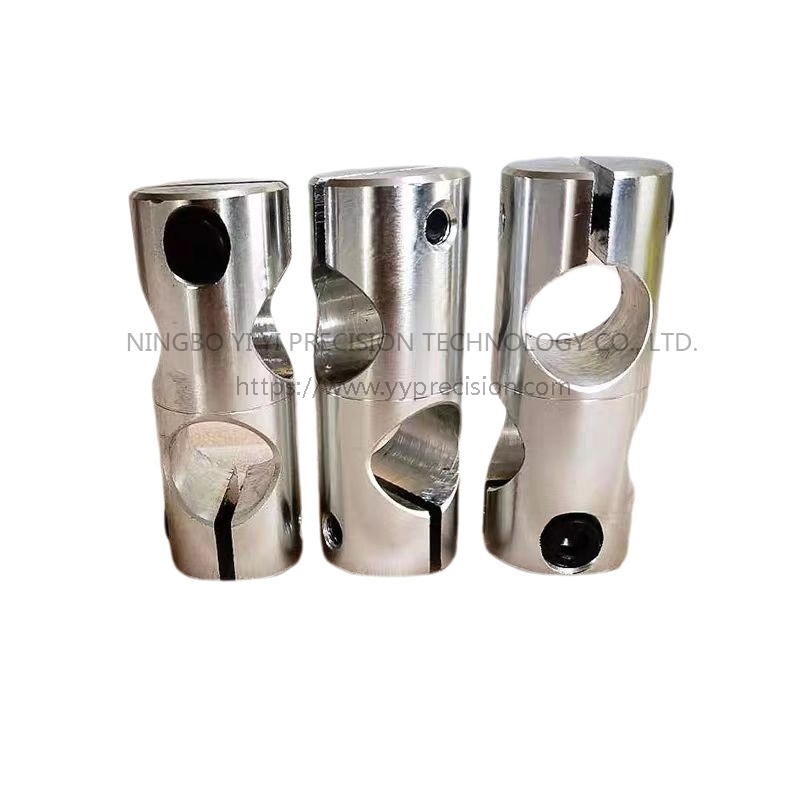

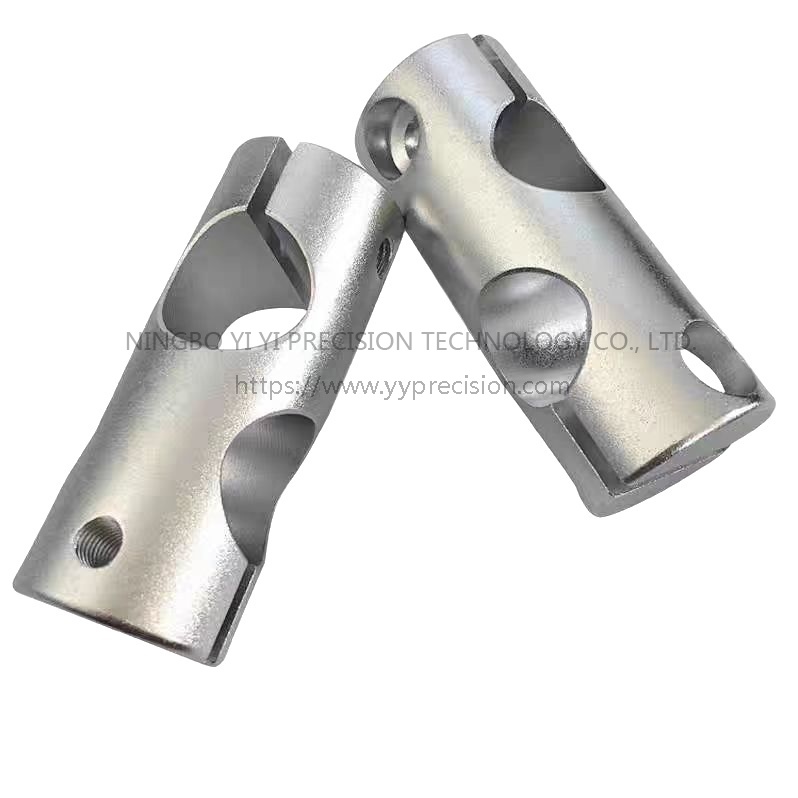

Stainless steel universal adapter/double hole steering knuckle
Basic structure:
Main body shape: Generally a fork-shaped structure, this shape is similar to a goat's horn, so the steering knuckle is often called a "ram's horn". The upper and lower fork parts of the fork-shaped structure are usually equipped with two coaxial mounting holes, which are the main manifestation of its "double holes" and are used to install key components such as the kingpin.
Connection parts: In addition to the double holes used to connect the kingpin, the steering knuckle also has other connection parts. For example, in automotive applications, the upper part of the steering knuckle is usually connected to the steering knuckle arm and is connected to the steering tie rod to transmit steering force; the lower part is connected to the trapezoidal arm and is connected to the steering tie rod to achieve the steering function of the vehicle. In addition, there are structures such as flanges for mounting wheel hubs and brake base plates to closely integrate wheel rotation, braking and other functions with the steering system.
Material properties:
Advantages of stainless steel: Stainless steel has good corrosion resistance, can maintain stable performance under various harsh environmental conditions, is not easy to rust and corrode, and can effectively extend the service life of the steering knuckle. At the same time, stainless steel has high strength and can withstand various stresses and impact forces generated during vehicle driving, ensuring the safe and reliable operation of the steering system.
Differences in different stainless steel models: Depending on specific usage requirements and working conditions, stainless steel double-hole steering knuckles may use different types of stainless steel materials. For example, 304 stainless steel has good overall performance and is widely used in general automobile and mechanical fields; 316 stainless steel is superior in corrosion resistance and is suitable for special environments with high corrosion resistance requirements.
How it works:
Steering function realization: When the driver turns the steering wheel, the steering force is transmitted to the steering knuckle through the transmission mechanism of the steering system. The steering knuckle rotates around the kingpin, and because it is connected to the wheel hub, it drives the wheel to deflect at a certain angle to achieve steering of the vehicle. In this process, the double-hole structure ensures the accurate installation and stable operation of the kingpin, so that the steering action can be accurately transmitted to the wheels.
Carrying and transmitting loads: During vehicle driving, the steering knuckle not only has to bear loads such as vertical force, lateral force and braking force from the wheels, but also transmits these loads to the vehicle's suspension system and frame. The solid structure and high-quality materials of the stainless steel double-hole steering knuckle can ensure that it will not be deformed or damaged when it bears and transmits these loads, ensuring the driving stability and safety of the vehicle.
Automobile industry: It is a key component in automobile steering axles and is widely used in various types of automobiles, including passenger cars, commercial vehicles, off-road vehicles, etc. Different types of cars have different performance and size requirements for steering knuckles, but the basic structure and functions of stainless steel double-hole steering knuckles are similar, both to achieve reliable steering of the vehicle.
Mechanical engineering field: In addition to the automotive industry, similar steering knuckle structures are also used in some other mechanical engineering fields, such as construction machinery, agricultural machinery, etc. These machines usually need to operate in complex working environments and have high requirements on the reliability and durability of parts. The excellent performance of stainless steel double-hole steering knuckles enables it to meet these needs.
-
Material: stainless steel
Maximum diameter: 50 (mm)
Maximum length: 600 (mm)
Tolerance: 0.02 -
