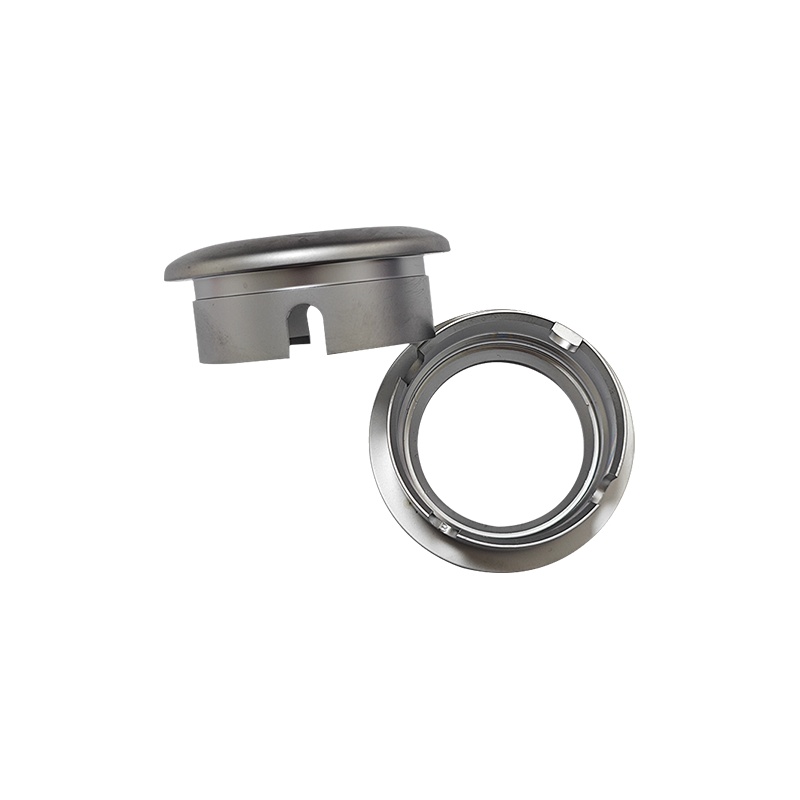

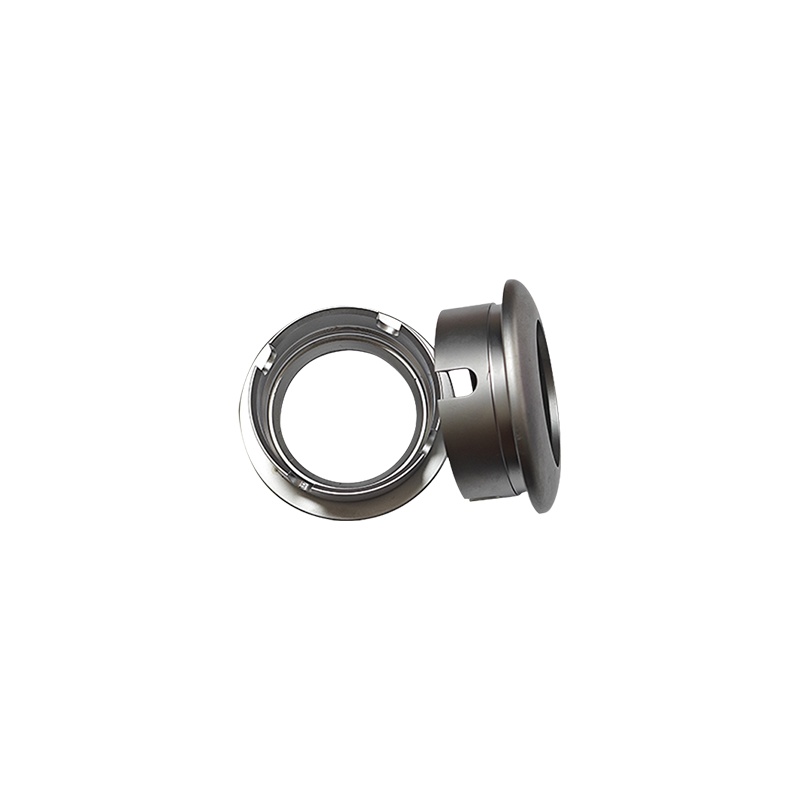

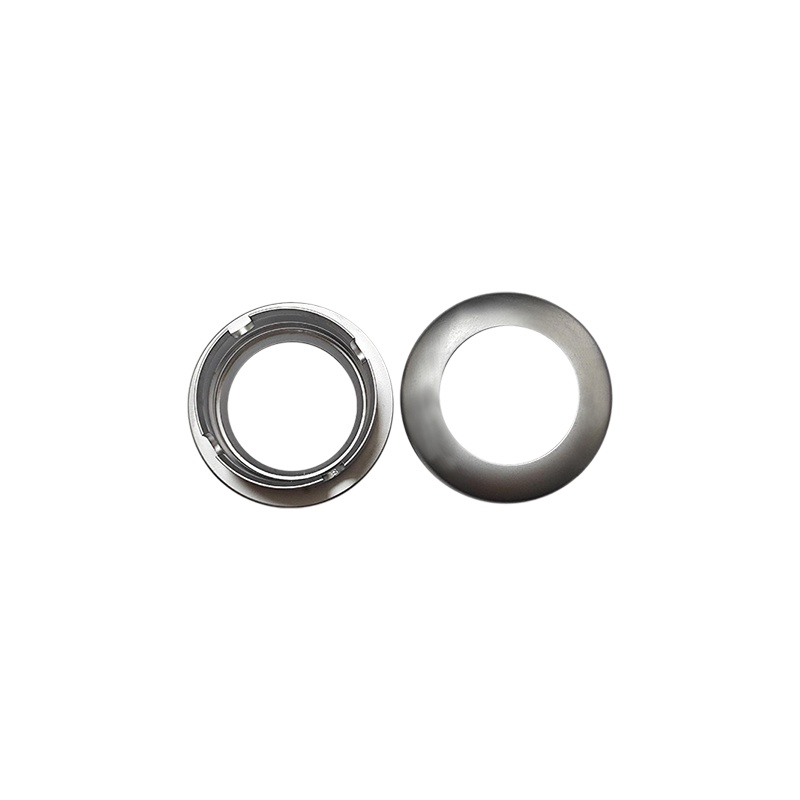

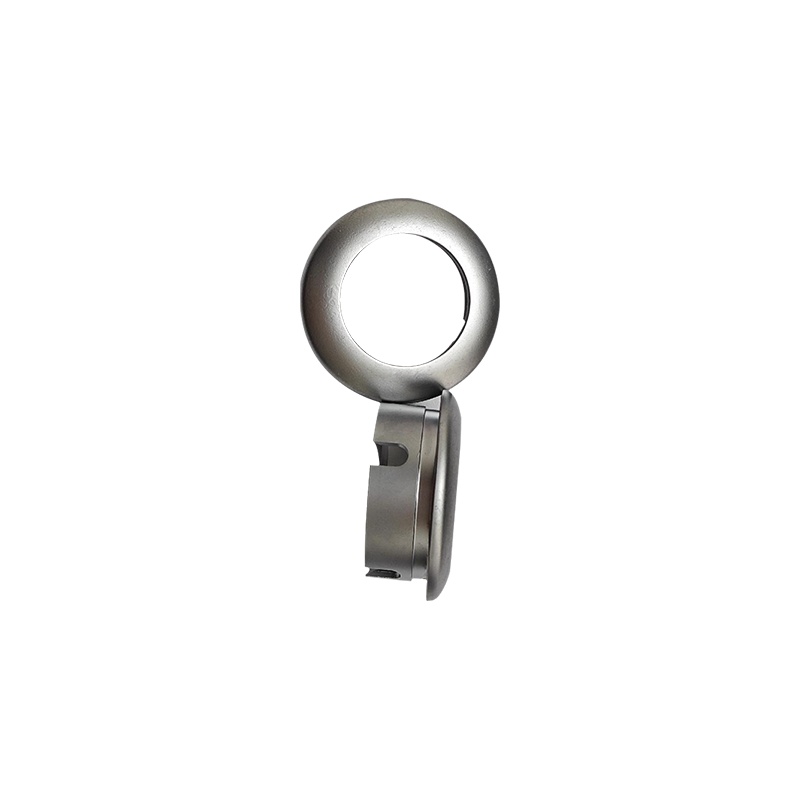

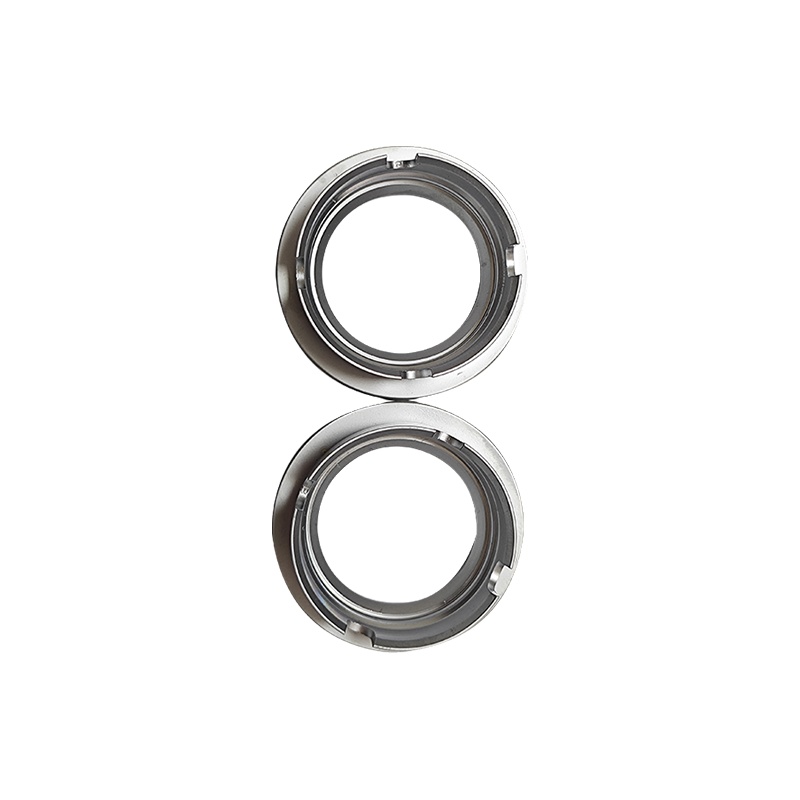

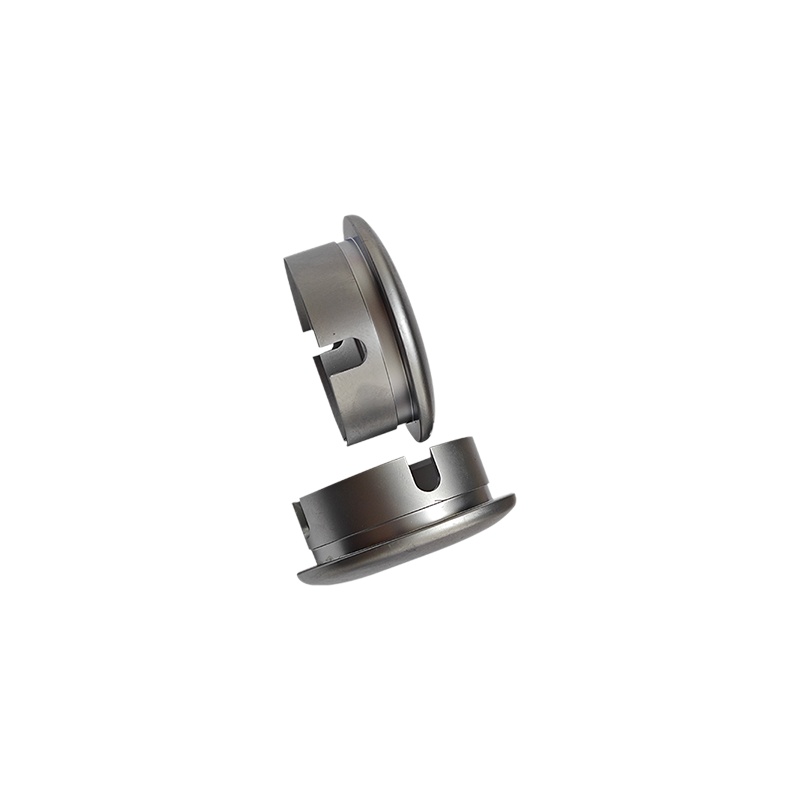

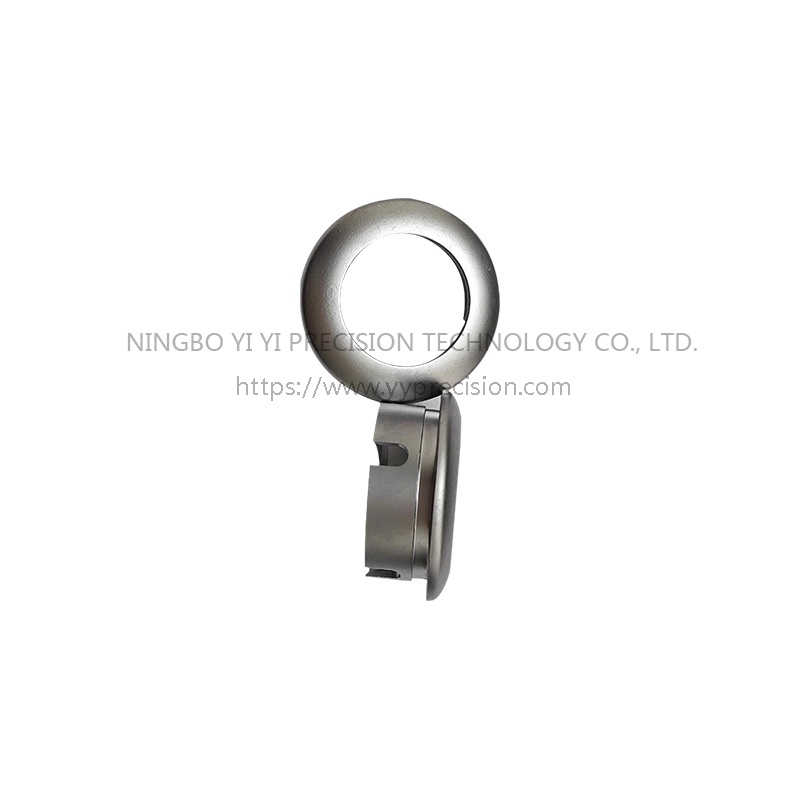

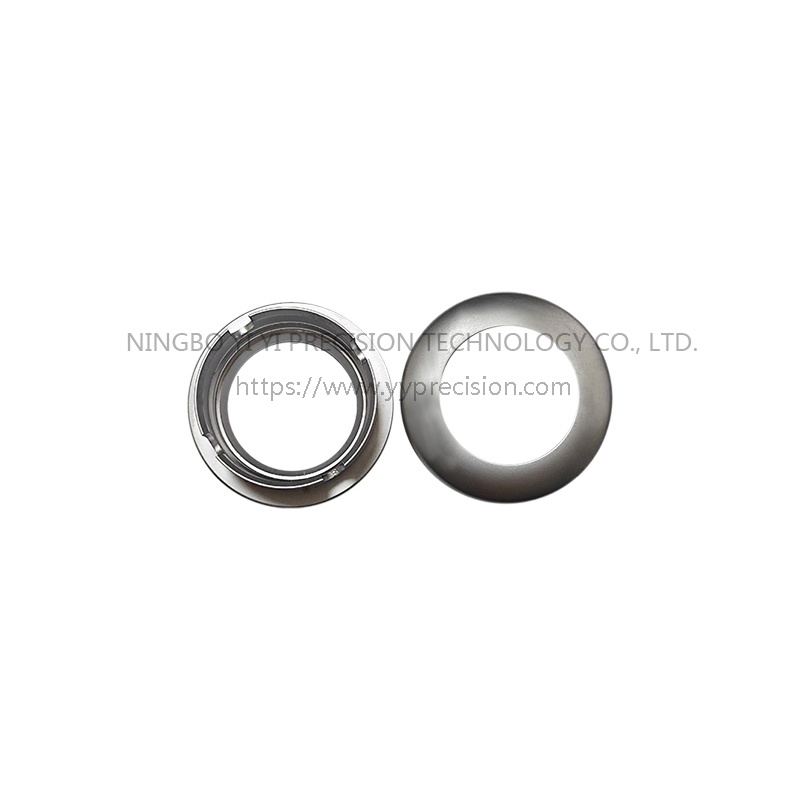

Stainless steel inner adapter ring interface

The shape of the stainless steel inner adapter ring interface is usually designed according to the shape of the camera body mount and lens mount. Common shapes are round and have a bayonet structure on the edge. For example, for the Canon EF-EOS R adapter ring interface, the body bayonet end (EOS R) is a square electronic bayonet design with multiple electronic contact card slots for connecting to the camera body and realizing data transmission. Such as autofocus signals, aperture control signals, etc.; the lens mount end (EF) is a circular slot for tightly fitting EF lenses.
In terms of specifications, the diameter of the interface accurately matches the corresponding bayonet standard. For example, the stainless steel inner adapter ring for Nikon F mount to Z mount has a diameter of about 47mm at the F mount end and about 55mm at the Z mount end. The accuracy of these dimensions is very high, and the tolerances are generally controlled to a very small level. within the range to ensure a solid connection between the lens and the body to avoid loosening.
Interface connection method
Bayonet connection: This is the most common connection method. There is a "buckle"-like structure inside the stainless steel interface. By rotating the lens, the slot of the lens mount and the buckle of the adapter ring interface engage with each other, thereby achieving a firm connection. For example, when the Sony E mount is connected to other mount lenses, insert the lens into the adapter ring interface and rotate it at a certain angle (usually counterclockwise). When you hear a "click", it means that the lens has been connected through the bayonet mount. Stably installed on the adapter ring, this connection method is convenient, fast and tight.
Connection with electronic contacts: For some modern camera systems, the adapter ring interface also involves the connection with electronic contacts. The stainless steel interface will reserve precise electronic contact positions. When the lens is installed on the adapter ring, these electronic contacts will come into contact with the corresponding contacts on the lens to realize signal transmission between the camera and the lens. Take the Fuji Use normal functions after transfer.
Sealing performance of interface
Stainless steel inner adapter ring interfaces usually have good sealing designs. There will be a rubber gasket or sealing ring on the edge of the interface. These seals prevent dust, moisture and other impurities from entering the connection between the camera body and lens. For example, in outdoor photography environments, when encountering humid weather or sandy weather, good sealing performance can ensure that the optical elements inside the camera and lens are not corroded and protect the image quality. Even in the harsher underwater photography environment (using a special waterproof adapter ring and waterproof lens cover, etc.), the sealing structure of the interface can play a vital role in preventing water intrusion.
Interface durability
Since the stainless steel material itself has high hardness and corrosion resistance, the inner adapter ring interface is very durable under normal use. It can withstand multiple lens installation and removal operations without easily deforming. Compared with some plastic interfaces, stainless steel interfaces are less prone to problems such as wear and loosening during frequent use. Moreover, when exposed to the external environment for a long time, such as high temperature and high humidity environments, the stainless steel interface can maintain good mechanical properties and will not rust or corrode as easily as some metal alloys, thus ensuring the long-term durability of the adapter ring. Stable to use.

Lens compatible uses
Expand the range of lens options: One of the most important uses of the stainless steel internal adapter ring interface is to make the camera compatible with more lenses with different mounts. For example, many photographers may have old lenses from multiple brands or different mount systems. These lenses can be mounted on your current camera body via a stainless steel internal adapter ring with a suitable interface. For example, if users who own Nikon F mount lenses want to use these lenses on Sony E mount cameras, they can use the stainless steel inner adapter ring interface from Nikon F mount to Sony E mount to achieve compatibility, thus making photography more convenient. This allows designers to utilize previously invested lens resources without having to be limited to lenses with the camera’s native mount.
Achieve cross-system lens borrowing: In some special circumstances, such as temporarily requiring a lens with a specific focal length or special optical performance, and there is no suitable lens in the camera system you are using, you can borrow it from other systems through the stainless steel internal adapter ring interface. Lenses borrowed from camera systems. For example, in the field of macro photography, some brands of macro lenses have excellent optical performance. By installing them on your own camera through an adapter ring interface, you can obtain high-quality macro shooting effects to meet specific shooting needs.
Optical performance optimization purposes
Correcting optical aberrations: Some high-quality stainless steel inner adapter ring interfaces are designed to correct the optical aberrations of the lens to a certain extent. Some lenses may have slight chromatic aberration or distortion under the native bayonet system. After being transferred through the adapter ring interface, the optical structure inside the adapter ring (such as the use of a special optical lens combination or a precisely calculated interface shape) These aberrations can be optimized. Taking a wide-angle lens as an example, through a suitable adapter ring interface, edge distortion can be reduced, making the captured images more realistic and natural.
Adjust focus and magnification: In some cases, the stainless steel inner adapter ring can change the actual focus and magnification of the lens. For example, in macro photography, certain adapter ring interfaces can shorten the minimum focusing distance of the lens, thereby increasing the lens's magnification, allowing photographers to capture the details of small objects more clearly. Or when transferring a telephoto lens, the optical design of the interface may change the effective focal length of the lens to a certain extent, allowing the photographer to obtain different viewing angles.
Mechanical stability use
Stable lens connection: The stainless steel inner adapter ring interface provides a reliable mechanical connection. Since the stainless steel material itself has high strength and hardness, its interface can firmly connect the camera body and lens. During shooting, especially when using a heavier telephoto lens or in some shooting scenes that require frequent camera movement (such as sports photography, wildlife photography), a stable connection is crucial. For example, a telephoto lens may weigh several kilograms and is tightly fixed to the camera body through a stainless steel internal adapter ring interface. This prevents the lens from loosening or falling off due to shake or accidental collision, ensuring smooth shooting.
Ensure precise focus and aperture control: In adapter ring interfaces with electronic contacts, their mechanical stability is also very important for precise focus and aperture control. The precise design and stable connection of the interface ensure that the focus and aperture control signals from the camera body can be accurately transmitted to the lens through the electronic contacts. For example, when shooting portraits, precise focus is needed to capture details such as the person's eyes. Through a stable adapter ring interface and effective signal transmission, it can be ensured that the lens can complete the focusing action quickly and accurately, and can follow the camera's instructions. Correctly adjust the aperture size to achieve the ideal depth of field effect.
