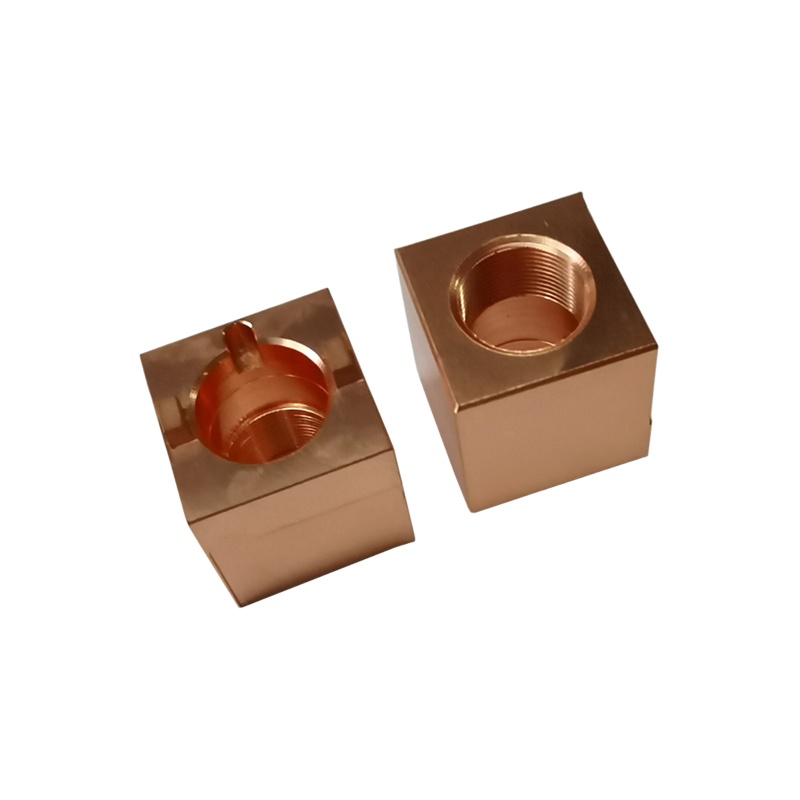

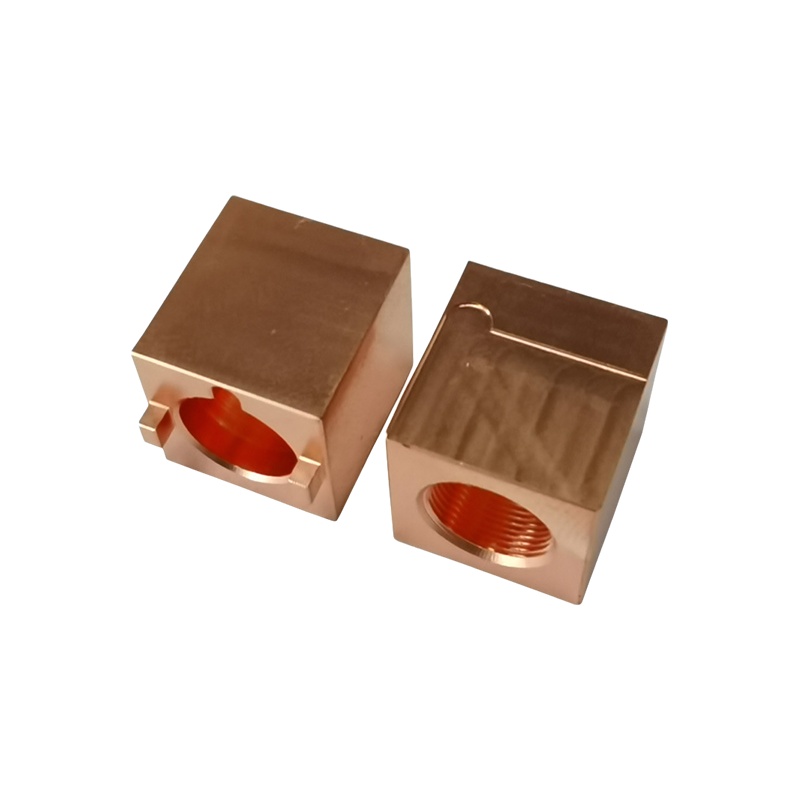

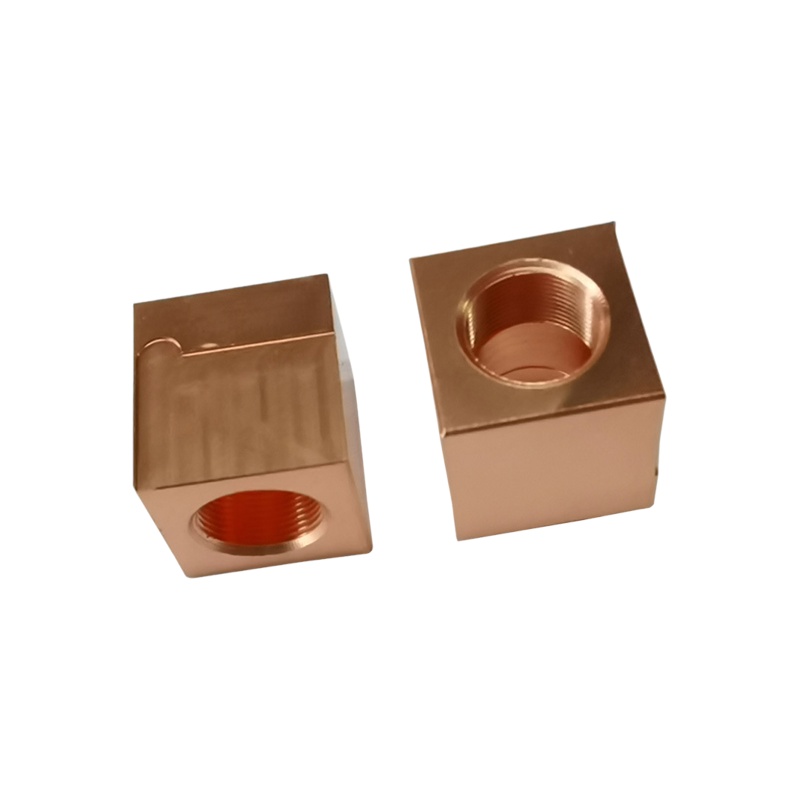

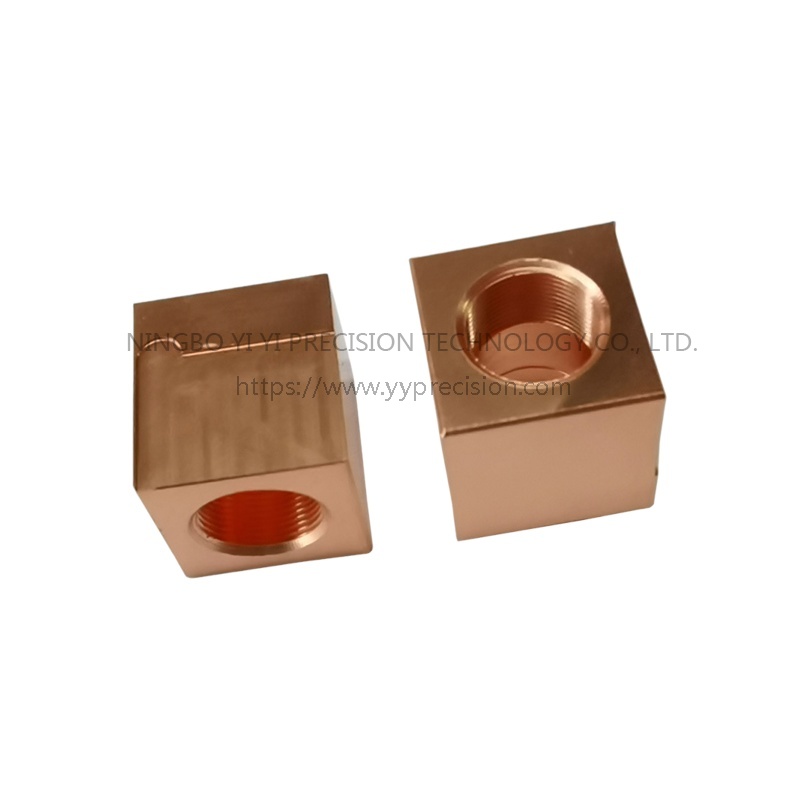

Four square flange trapezoidal nut
Structural features
Trapezoidal thread design: The four-sided flange trapezoidal nut has trapezoidal threads on the inside. Trapezoidal threads have good self-locking properties and are less likely to loosen when subjected to axial force than ordinary triangular threads. This is because the profile angle of the trapezoidal thread is 30°, and the friction between the threads is large, which can effectively prevent the nut from rotating when it vibrates or is acted upon by external forces, ensuring the stability of the connection. For example, in some mechanical equipment that needs to be fastened for a long time, such as the cooperation between the screw rod and nut of a machine tool, the trapezoidal thread nut can take advantage of this self-locking advantage.
Square flange structure: The outside of the nut is a square flange. This square shape makes it easier to operate from four directions with tools such as wrenches. Compared with traditional hexagonal nuts, it is more flexible in some operating environments with narrow spaces. The flange part increases the contact area between the nut and the connecting surface, allowing the nut to better disperse pressure when tightening and reduce the pressure on the surface of the connecting component. For example, when a nut is tightened against a softer material surface, a square flange prevents the nut from sinking into the material while also providing a more stable connection.
Material properties
Diversity of material selection: Four-way flange trapezoidal nuts can be made of a variety of materials, the common ones are carbon steel, alloy steel and stainless steel. Nuts made of carbon steel have lower cost and higher strength, and are suitable for general mechanical connection situations. Alloy steel nuts have higher strength and toughness, can withstand greater loads and impact forces, and are often used in some heavy-loaded or high-speed equipment. Nuts made of stainless steel have good corrosion resistance and perform well in environments with humid and corrosive media (such as chemical equipment and marine engineering equipment).
Heat treatment to strengthen properties: In order to improve the mechanical properties of nuts, they are usually heat treated. For example, for carbon steel nuts, quenching and tempering can increase their hardness and strength while adjusting their toughness so that they can better adapt to different working environments. After proper heat treatment, the strength and wear resistance of alloy steel nuts can be significantly improved, allowing them to meet more demanding working conditions.
Dimensions and standards
Specification expression method: The specifications of four-way flange trapezoidal nuts are mainly expressed by thread specifications and flange dimensions. Thread specifications include nominal diameter, pitch, etc., such as Tr40×7, which represents a trapezoidal thread with a nominal diameter of 40mm and a pitch of 7mm. Flange dimensions include the side length, thickness, etc. of the flange. These dimensions determine the contact area and load-bearing capacity of the nut during connection. Different industries and application scenarios may adopt different specifications and standards based on actual needs.
Standard system: Internationally, these nuts follow ISO standards; domestically, there are GB (China National Standards) standards, etc. These standards have detailed provisions on the dimensional accuracy, thread quality, material properties, etc. of nuts to ensure the versatility and interchangeability of nuts in different equipment. For example, the trapezoidal thread nuts produced in accordance with the GB/T 5796-2005 standard meet the national standards in size and quality and can be easily used with the corresponding screws.
Machine tool industry: In the feed system of machine tools, the four-way flange trapezoidal nut is an indispensable component. It cooperates with the screw to convert rotational motion into linear motion, and due to its good self-locking performance, it can accurately control the moving position of the workbench and other components to ensure the processing accuracy of the machine tool. For example, in the longitudinal and transverse feed mechanisms of CNC lathes, the stability and accuracy of the trapezoidal nuts directly affect the processing quality of the parts.
Lifting equipment: Screw drive system used for cranes, winches and other lifting equipment. When lifting heavy objects, the nut needs to withstand huge axial force. The high strength and self-locking performance of the four-sided flange trapezoidal nut can ensure the safe lifting and lowering of heavy objects. At the same time, the four-sided flange structure is easy to operate during installation and maintenance, which can improve work efficiency.
Construction machinery: It is also widely used in construction engineering machinery, such as concrete mixers, tower cranes and other equipment. These devices often operate in harsh environmental conditions and require nuts with good stability and corrosion resistance. The four-sided flange trapezoidal nut can meet these requirements and provide reliable connection guarantee for the normal operation of construction machinery.
-
Material: Brass
Maximum diameter: 500 (mm)
Maximum length: 500 (mm)
Tolerance: ±0.1 -
