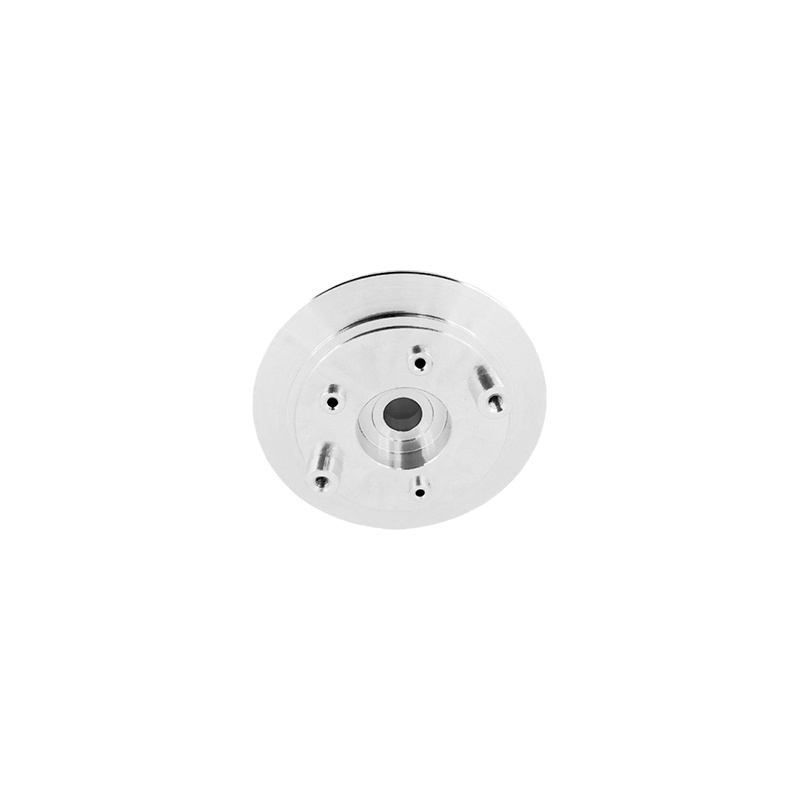

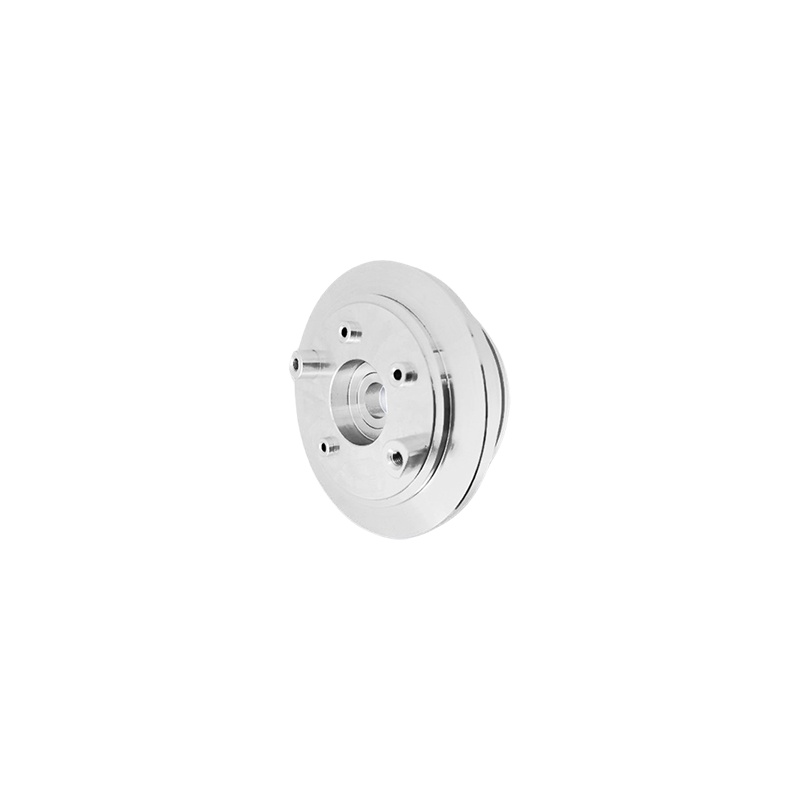

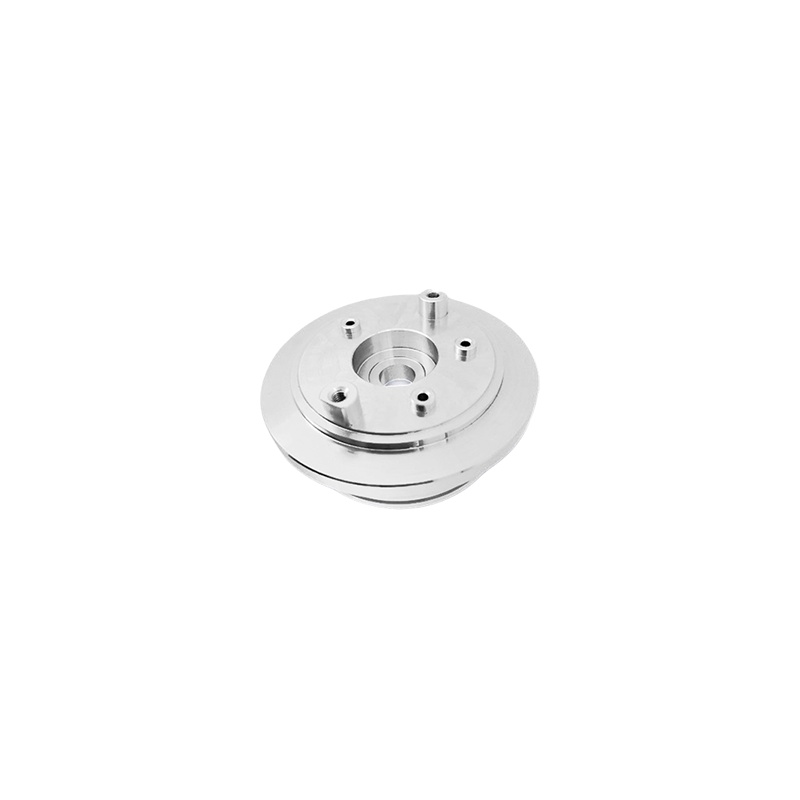

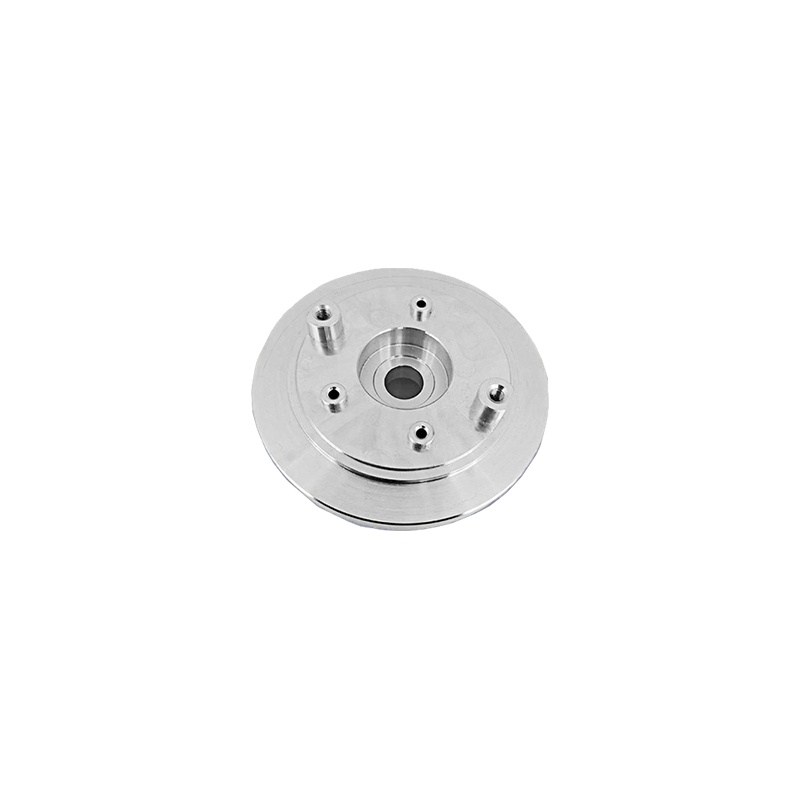

Aluminum alloy clamp flange sight glass
Material features:
Light weight: The density of aluminum alloy is relatively small, which makes the aluminum alloy clamp flange light in weight, making it more convenient and labor-saving during installation and transportation. For example, in some high-altitude pipeline installation operations, its lightweight characteristics can reduce the difficulty of construction and the labor intensity of workers.
Good corrosion resistance: Aluminum alloy easily forms a dense oxide film in the air. This oxide film can prevent the internal aluminum alloy from being further oxidized, making it have good corrosion resistance. Therefore, aluminum alloy clamp flanges are suitable for various working environments, including some corrosive media environments, such as chemical industry, sewage treatment and other industries.
Higher strength: Although the strength of aluminum alloy may be slightly lower than that of some high-strength alloy steels, after reasonable alloy formula design and processing technology, aluminum alloy clamp flanges can meet the strength requirements of most pipe connections. . It can withstand certain pressure and tension, ensuring the safe and reliable operation of the pipeline system.
Structural design:
Clamp structure: The flange of this structure consists of two symmetrical semi-circular rings, which sandwich the pipe in the middle, and then fasten the two semi-circular rings together through bolts to achieve the connection of the pipes. The advantage of the clip-on structure is that it is easy to install and disassemble, and does not require complex welding operations like traditional welded flanges, saving construction time and costs.
Sealing performance: Aluminum alloy clamp flanges are usually equipped with sealing gaskets or sealing rings to ensure the sealing of pipe connections. Sealing gaskets are generally made of rubber, polytetrafluoroethylene and other materials, which have good elasticity and sealing properties and can effectively prevent medium leakage.
Connection method:
Bolt connection: It is the most common connection method for aluminum alloy clamp flanges. During installation, pass the bolts through the bolt holes on the flange, and then tighten the nuts so that the two clamping flanges are tightly clamped on the pipe. The number and specification of bolts are selected based on the size of the flange and the pressure rating of the pipe to ensure a secure connection.
Matching pipe fittings: Aluminum alloy wafer flanges are usually used with corresponding pipe fittings, such as wafer butterfly valves, etc. This matching use can make the connection of the pipeline system closer and improve the overall performance of the system.
Water supply and drainage system: Aluminum alloy clamp flanges are widely used in urban water supply and drainage pipes, building water supply and drainage pipes and other fields. Its good corrosion resistance and sealing performance can ensure the safety of water transportation, and its lightweight material facilitates the installation and maintenance of pipelines.
Chemical industry: The chemical production process involves the transportation of various corrosive media. Aluminum alloy clamp flanges can adapt to this harsh working environment and ensure the stable operation of the pipeline system.
HVAC system: In HVAC systems, aluminum alloy clamp flanges are often used to connect ventilation ducts, air conditioning water pipes, etc. Its quick installation and disassembly features facilitate system debugging and maintenance.
-
Material: aluminum alloy
Tolerance: ±0.01mm -
