KF vacuum joint/304 stainless steel flange welding joint/chuck joint

Home / Products / Turned parts/CNC / KF vacuum joint/304 stainless steel flange welding joint/chuck joint

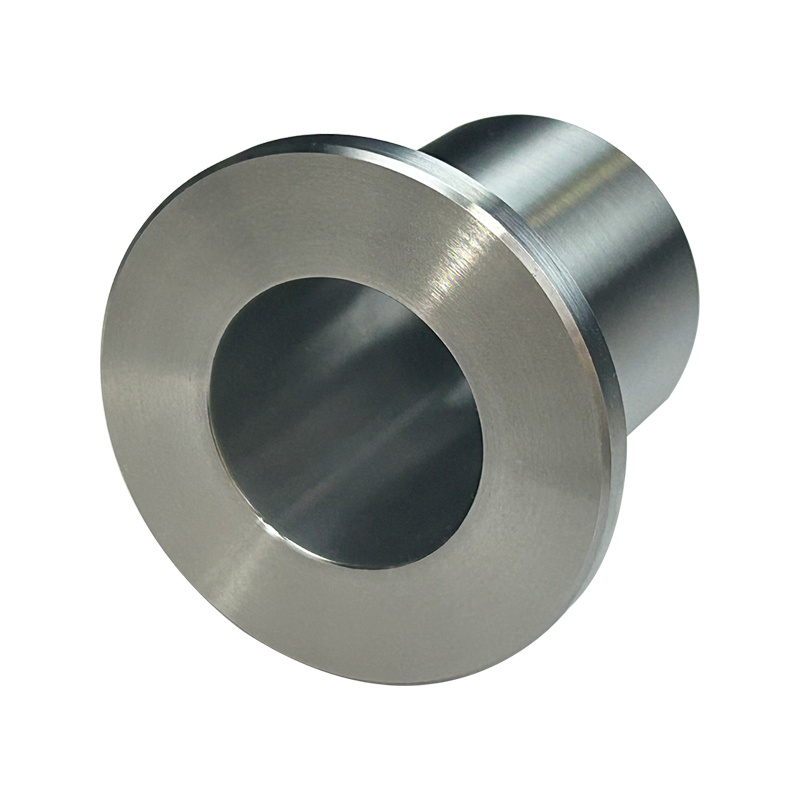

KF vacuum joint/304 stainless steel flange welding joint/chuck joint
  • KF vacuum joint/304 stainless steel flange welding joint/chuck joint

KF vacuum joint/304 stainless steel flange welding joint/chuck joint

Features:

• Good sealing performance: rubber or metal gaskets are used as sealing materials, which can withstand high pressure and high vacuum conditions and provide reliable sealing effects.

• Easy to install and disassemble: The structure is simple. The two flanges are fixed by clamps. No other tools are needed. Installation or disassembly can be completed by tightening the dish nut by hand. It is convenient and fast, especially suitable for systems that need to frequently change configurations or Clean occasions.

• Suitable for small diameter pipes: Common specifications are DN10, 16, 25, 40, 50, suitable for small diameter pipe systems, small size, light weight, saving space and cost.

• Stable and reliable quality: Strict testing and quality control ensure stable operation of the system.

• Multiple materials available: flanges are usually made of 304, 316 stainless steel, etc., and sealing materials include Viton, Buna, Silicone, EPDM, aluminum, etc.

• Economical: Compared with other connection methods, it has a cost advantage.

It is commonly used in high-tech industries such as semiconductors, electronics, optics, and chemistry, as well as experimental equipment and industrial systems that require medium and low vacuum environments. It is mainly used to connect pipelines and equipment in vacuum systems and low-pressure pipeline systems. For example, in the semiconductor manufacturing process, it is used to connect various vacuum equipment and pipelines to maintain the required vacuum; in optical instruments, it ensures that the manufacturing and testing environment of optical components is in a vacuum state; in chemical experiments, it is used for chemical experiments. The reaction provides specific vacuum conditions, etc.
